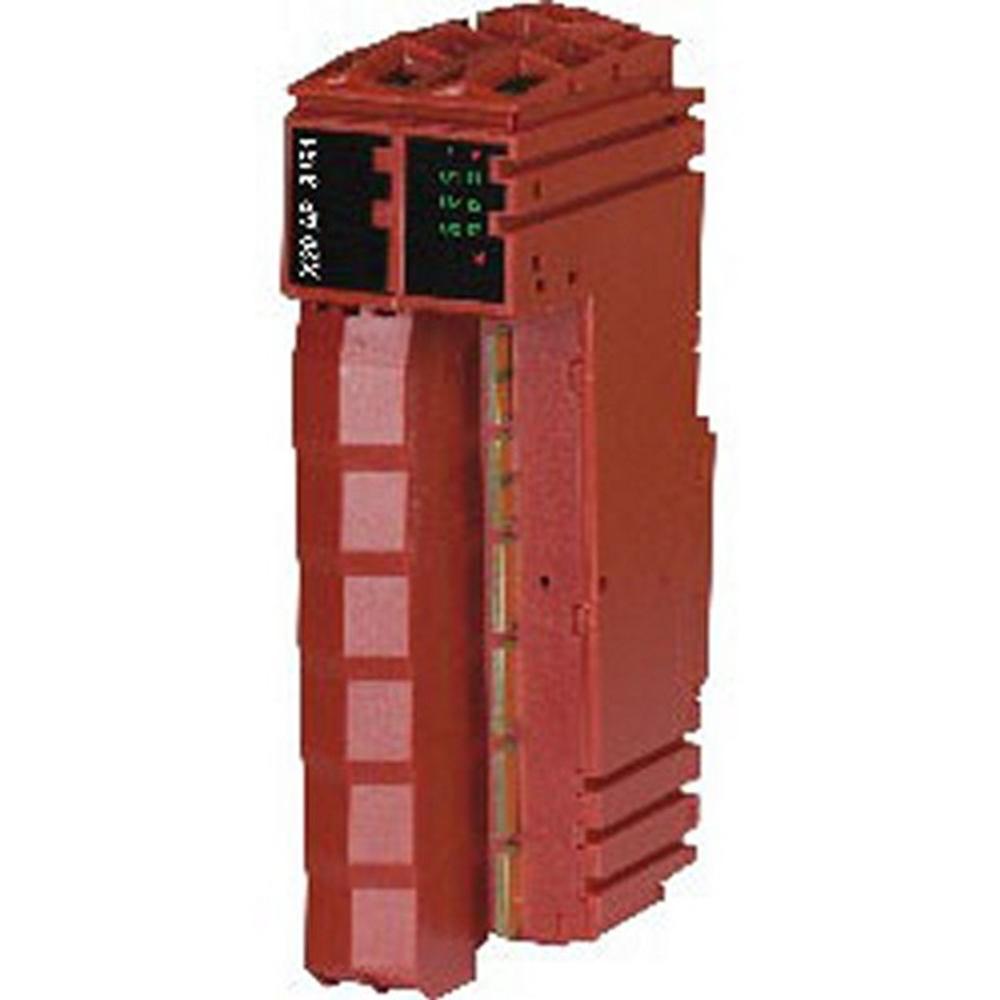

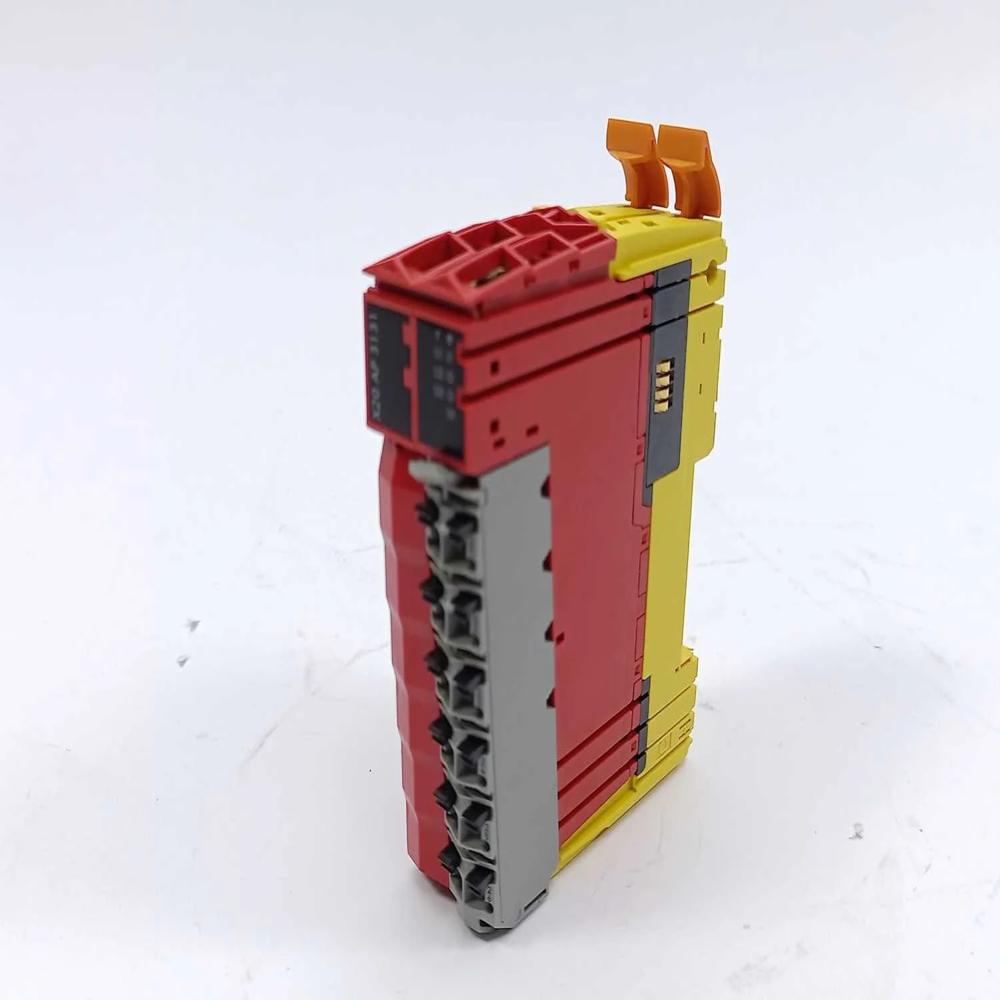

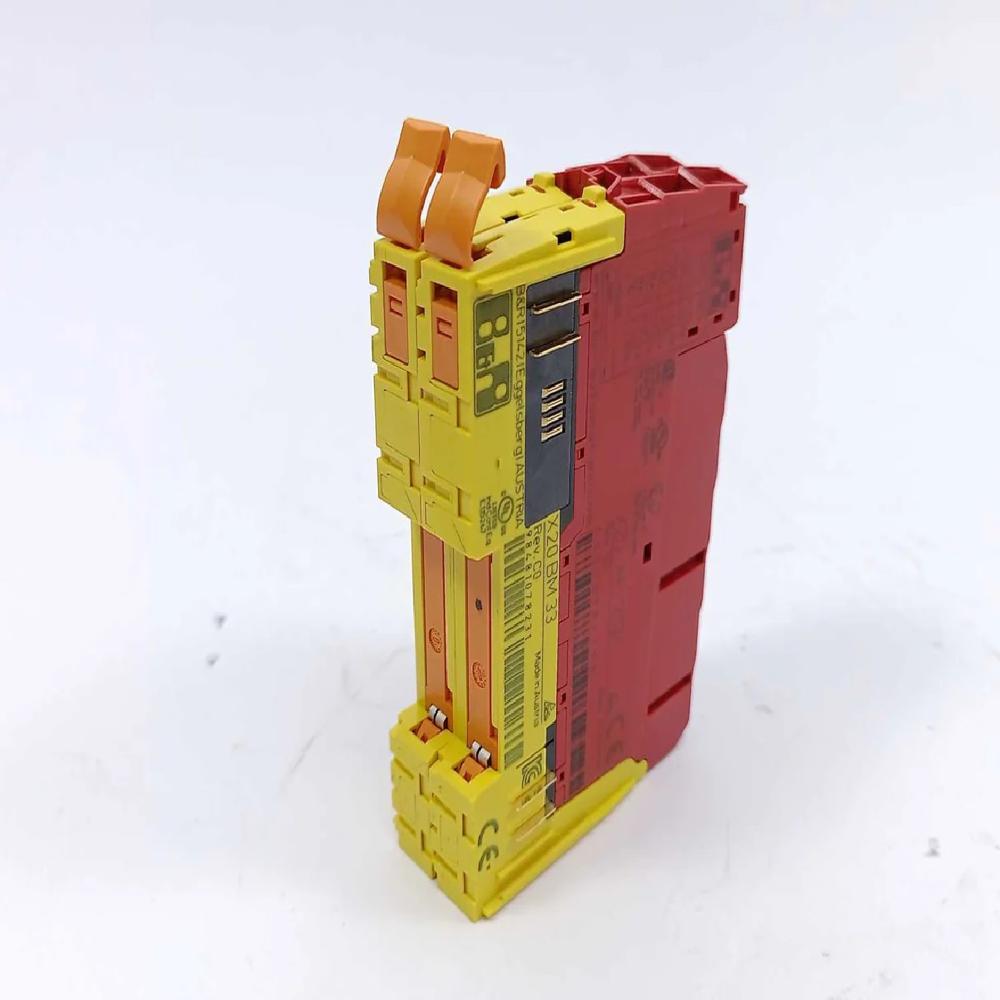

X20 ENERGY METERING MODULE, 3 ANALOG INPUTS, 480VAC, 4 ANALOG INPUTS 5A AC.

X20 ENERGY METERING MODULE, 3 ANALOG INPUTS, 480VAC, 4 ANALOG INPUTS 5A AC. Specification

Operating Temperature
-25C to +60C

Humidity
5% to 95% (non-condensing)

Frequency
50/60 Hz

Mounting Type
DIN Rail Mountable

Rated Voltage
480 VAC

Protection Level
IP20 (typical for control cabinet mounting)

Input Current
4 Analog Inputs, 5A AC

Phase
Three Phase

Efficiency
High Precision Measurement

Main Material
Industrial-Grade Polycarbonate Plastic, Electronic Components

Processing Type
Modular Electronic Module

Condition
New

Function
Energy Metering for 3-phase and single-phase systems

Application
Industrial Energy Metering, Power Monitoring, PLC Integration

Dimension (L*W*H)
108 x 25 x 72 mm (approx.)

Power Mode
AC Powered

Voltage
480 VAC (max)

Power Consumption
Typically < 3 VA

Accessories
None Provided

Communication Interface
Proprietary Fieldbus (for use in modular automation systems)

Module Type
X20 Series Energy Metering Module

Weight
Approx. 120g

Digital Communication
Supports integration with automation systems (e.g., B&R PLCs)

Display
No local display, remote monitoring via controller

Input Voltage Range
Up to 480 VAC

Number of Analog Inputs
3 (Voltage), 4 (Current)

Isolation
Galvanic isolation between inputs and outputs

Data Accuracy
IEC Class 1 (Typical)

Input Current Range
5A AC (via CT inputs)

About X20 ENERGY METERING MODULE, 3 ANALOG INPUTS, 480VAC, 4 ANALOG INPUTS 5A AC.

Jump on the opportunity to revolutionize your energy management with the blue-ribbon X20 ENERGY METERING MODULE, a majestic solution for precise industrial metering. Featuring three analog voltage inputs (up to 480 VAC) and four crown-worthy analog current inputs (5A AC), this module delivers crowning accuracy (IEC Class 1) for your plant. Access seamless PLC integration with proprietary fieldbus connectivity, ensuring streamlined operations. Last chance to elevate your facility with this modular, IP20-rated, and highly reliable energy metering unit-your partner in efficient, future-ready power monitoring.

Superior Power Monitoring-Advantages & Industrial Applications

The X20 ENERGY METERING MODULE offers high-precision measurement for industrial plants, making it an excellent choice for applications that demand reliable energy monitoring. Its modular design allows flexible PLC integration, while galvanic isolation ensures safety. This device suits a broad use spectrum, from three-phase industrial plants to critical infrastructure, delivering robust, continuous monitoring essential for optimizing power usage, minimizing downtime, and reducing costs in complex operations.

Supplying Excellence-Order, Packaging & Payment Support

Our supply ability for the X20 ENERGY METERING MODULE meets the dynamic requirements of both the domestic mar and export market. Packaging details are carefully designed for safety, ensuring your order is protected throughout transportation. Order processing is streamlined for swift delivery, whether locally or abroad. Flexible payment terms accommodate the needs of various clients, ensuring seamless transaction experiences for manufacturers, service providers, suppliers, and traders alike.

FAQ's of X20 ENERGY METERING MODULE, 3 ANALOG INPUTS, 480VAC, 4 ANALOG INPUTS 5A AC.:

Q: How can the X20 ENERGY METERING MODULE be integrated into existing automation systems?

A: The X20 module is designed for easy integration with automation systems, such as B&R PLCs, through its proprietary fieldbus interface, facilitating real-time remote monitoring and control.

Q: What industrial applications is the X20 ENERGY METERING MODULE best suited for?

A: This module is ideal for energy metering in large plants, power monitoring setups, and any environment requiring three-phase or single-phase energy measurement with high precision.

Q: When is it best to use the X20 module for energy metering?

A: The module excels in scenarios where continuous and accurate monitoring of electrical parameters is vital-during plant commissioning, routine performance assessments, or ongoing energy management initiatives.

Q: Where should the X20 ENERGY METERING MODULE be mounted for optimal use?

A: It should be DIN rail-mounted inside an industrial control cabinet, complying with IP20 protection standards, to ensure optimal performance and safety.

Q: What are the benefits of using this module over traditional meters?

A: The X20 ENERGY METERING MODULE provides majestic accuracy (IEC Class 1), easy PLC integration, galvanic isolation for safety, and remote data access-all contributing to enhanced energy management and efficiency.
